DCM660R True RMS Clamp Meter - Digital Multimeter with AC/DC Current Voltage Resistance Temperature Measurement for Electricians & HVAC Technicians - Perfect for Electrical Maintenance, HVAC Repair & Industrial Applications
$96.38
$175.25
-45% OFF
Free shipping on all orders over $50
7-15 days international
8 people viewing this product right now!
30-day free returns
Secure checkout
87528763
Guranteed safe checkout
Description
The Sanwa DCM660R is a digital clamp-meter with digital multimeter capabilities.
The DCM660R can be used in a CAT III environment and can measure a current of up to 660 Amperes. Since this instrument also has digital multimeter functionalities it can also measure AC+DC voltage, resistance, and frequency as well as perform continuity tests.
The device uses the double integration operation method and True RMS for AC measuring. The display on this device is a large 6600-count LCD display with backlight. The DCM660R has a safety design compliant with the IEC61010-1 standard.
Meter comes with one set of test leads, carrying case and instructions.
- AC current measurable max. 660A & DMM function
- True RMS
- 6600-Count LCD with Back light
- Data hold
- Relative value
- Max/Min value hold
- Inrush current measurement
- Auto power save (15min after the last operation) (non-cancelable)
- IEC compliant
Specifications
| Function | Measuring Range | Accuracy | Resolution | Input Impedance |
|---|---|---|---|---|
| ACA | 66/660A | ±(2%+5) | 0.01A | |
| DCV | 600V | ±(1%+2) | 0.1V | 1MΩ |
| ACV | 600V | ±(1.2%+5) | 0.1V | |
| Frequency (A) | 660/6.6k/30k | ±(0.2%+1) | 0.1Hz | |
| Frequency (V) | 660/6.6k/66k/100k | ±(0.2%+1) | 0.1Hz | |
| Resistance | 660Ω | ±(1%+7) | 0.1Ω | |
| Continuity | Buzzer sounds at less than 30Ω Open voltage: approx. 1.2V | |||
| Sampling rate | 3 times/sec. |
| Bandwidth | 50-500Hz |
| Display | 6600 |

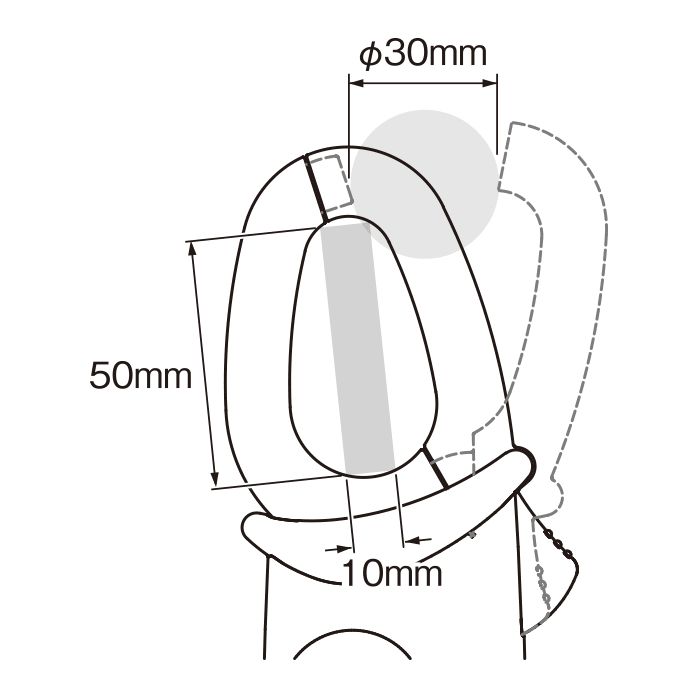

| Clamp diameter/Conductor size | Φ30mm/10×50mm |
| Battery | LR03×2 |
| Battery life | Approx. 55 hrs.（Alkaline battery/Backlight off) |
| Size/Mass | H208×W69×D38mm/Approx. 265g |
| Safety standards | IEC61010 CAT.Ⅲ600V |
