HG60 Series Digital Gloss Meter - 60° Angle Precision Gloss Tester for Paint, Plastic & Metal Surfaces - Perfect for Quality Control in Automotive, Furniture & Industrial Manufacturing
$212.02
$385.5
-45% OFF
Free shipping on all orders over $50
7-15 days international
28 people viewing this product right now!
30-day free returns
Secure checkout
77256073
Guranteed safe checkout
Description

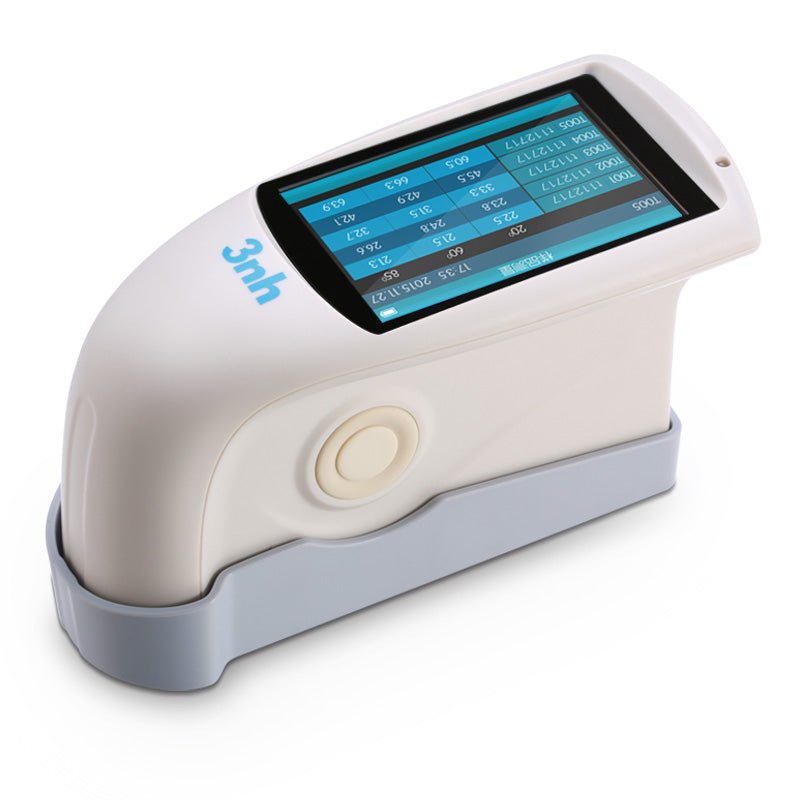

The 3nh HG60 and HG60S Gloss Meters are an economical, high-precision device for measuring surface gloss.
It features a 60° measuring angle and 9x15mm aperture, providing accurate and consistent readings on various materials including paint, plastic, metal and ceramics. With a sleek design, easy-to-read LCD display and user-friendly interface, it ensures quick, economical and reliable gloss measurement for quality control in industrial and laboratory settings.
- HG60
0~300GU Measuring Range
60° Measuring Angle
Basic Measuring Mode
GQC6 Software - HG60S
0~200GU Measuring Range
60° Measuring Angle
Basic Measuring Mode
No Software
Note: This item ships direct from the manufacturer. Please allow an additional 3-5 business days for order processing and shipment on all 3nh instruments.
Specifications
| Model: | HG60 | HG60S |
| Measuring Angle | 60° | 60° |
| Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457 | Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457 | |
| Measuring Area (mm) | 9x15 | 9x15 |
| Measuring Range | 0~300GU | 0~200GU |
| Division Value | 0.1GU | 1GU |
| Measurement Range | 0-10GU 10-100GU 100-300GU | 0-200GU ±1GU ± 1GU |
| Repeatability | ± 0.1GU ± 0.2GU ± 0.2%GU | |
| Reproducibility | ± 0.2GU ± 0.5GU ± 0.5%GU | |
| Measurement Standard | Conform with JJG696 first class glossmeter working requirement | Confirm with JJG696 second class glossmeter working requirement |
| Chromaticity Corresponding | Corresponding with CIE 1931(2°) under CIE C light source | Corresponding with CIE 1931(2°) under CIE C light source |
| Errors | ±1.5, ± 1.5% | ±1.5, ± 1.5% |
| Measuring Time | 0.5s | 0.5s |
| Dimension | L*W*H : 160mm*75mm*90mm | L*W*H : 160mm*75mm*90mm |
| Weight | 350g | 350g |
| Language | English/Chinese | English/Chinese |
| Battery | 3.7V, 3200mAh Li-ion Battery，>10000 times(within 8 hours) | 3.7V, 3200mAh Li-ion Battery, >10000 times (within 8 hours) |
| Display | TFT 3.5 inch | TFT 3.5 inch |
| Interface | USB/RS-232 | USB/RS-232 |
| Storage | Basic mode: 1000 | Basic mode: 1000 |
| Software | GQC6 Quality Control Software with QC report printing functions and more extended functions. | N/A |
| Operation Temperature | 0~40℃（32~104°F） | 0~40℃（32~104°F） |
| Storage Temperature | -20~50℃（-4~122°F） | -20~50℃（-4~122°F） |
| Humidity | <85% relative humidity, no condensation | <85% relative humidity, no condensation |
| Standard Accessories | Power Adapter, USB cable, User Manual, GQC6 software CD (except HG60S), Calibration Plate | Power Adapter, USB cable, User Manual, Calibration Plate |
| Optional Accessories | Miniature Printer | Miniature Printer |
| Notes | The specifications are subject to change without notice. | The specifications are subject to change without notice. |
